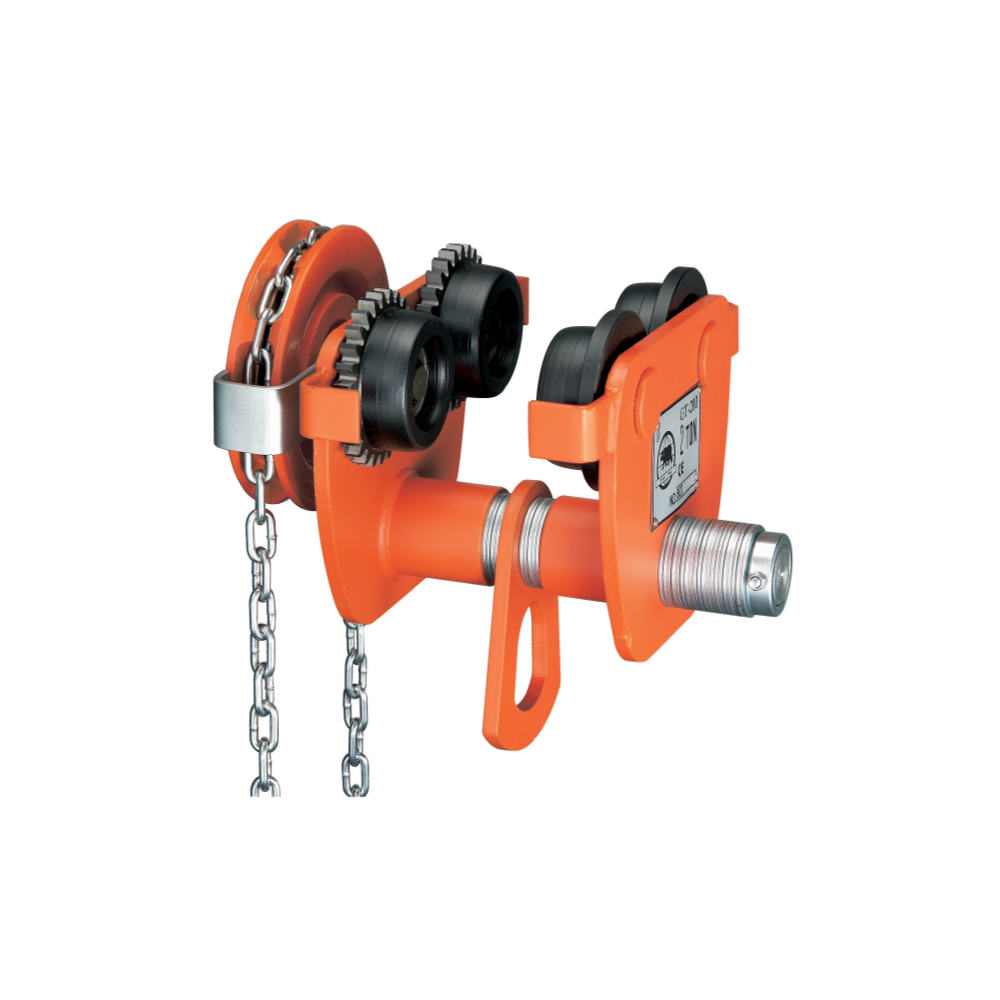

Geared Trolley

Request Quote

Description

Gain superior precision and effortless control over your heavy overhead loads with Marvisons' robust Geared Trolley. This essential rigging component is designed to provide a secure and mobile suspension point for chain hoists or electric hoists, allowing you to easily and accurately move loads horizontally along the lower flange of an I-beam or H-beam. It's a fundamental tool for workshops, factories, warehouses, and construction sites in Karachi, Pakistan, seeking a highly controlled and reliable solution for horizontal material handling.

Our Geared Trolleys are constructed from heavy-duty steel, engineered for exceptional durability and long-lasting performance under demanding load conditions. Unlike plain trolleys, the "geared" mechanism involves a hand chain that drives a sprocket, which in turn engages internal gears to smoothly move the trolley wheels along the beam. This geared action provides a significant mechanical advantage, enabling precise positioning and easier movement of heavy loads with minimal effort. Each trolley is easily adjustable to accommodate a wide range of beam flange widths, providing versatility for different installations. With a clear Working Load Limit (WLL) of 3 Ton (3,000 kg) (and available in other common capacities), Marvisons' Geared Trolleys are rigorously tested and clearly marked with their WLL. They are designed to meet or exceed stringent international safety standards, such as ASME B30.11, ensuring compliance and peace of mind for all your overhead material handling tasks. Safety features often include anti-drop plates to prevent the trolley from derailing.

Key Product Specifications:

Specification Detail / Value
Type Geared Trolley / Chain Driven Trolley
Operation Manual (Hand Chain Operated)
Capacity (WLL) 3 Ton (3,000 kg / 6,600 lbs)
Material Heavy-Duty Steel
Wheel Material Hardened Steel / Cast Iron
Beam Compatibility I-Beam, H-Beam (Adjustable Flange Width)
Standards ASME B30.11, EN 13157 (where applicable)
Key Feature Precise Horizontal Load Movement, Anti-Drop Plates, Mechanical Advantage



Important Note: Always ensure the trolley's WLL matches or exceeds the load. Verify the beam's capacity and ensure the trolley is properly installed and adjusted to the beam flange. Inspect the hand chain, gears, and wheels regularly for wear or damage.

Ideal for:

  • Workshops and Garages (for precise equipment positioning)
  • Factories and Manufacturing Plants
  • Warehouses and Distribution Centers
  • Construction Sites (for controlled placement of materials)
  • Loading Docks and Assembly Lines
  • Any application requiring accurate and efficient horizontal movement of loads on an overhead beam.

Choose Marvisons' Geared Trolley for a dependable, precise, and efficient solution that enhances the flexibility, safety, and control of your overhead material handling operations.
