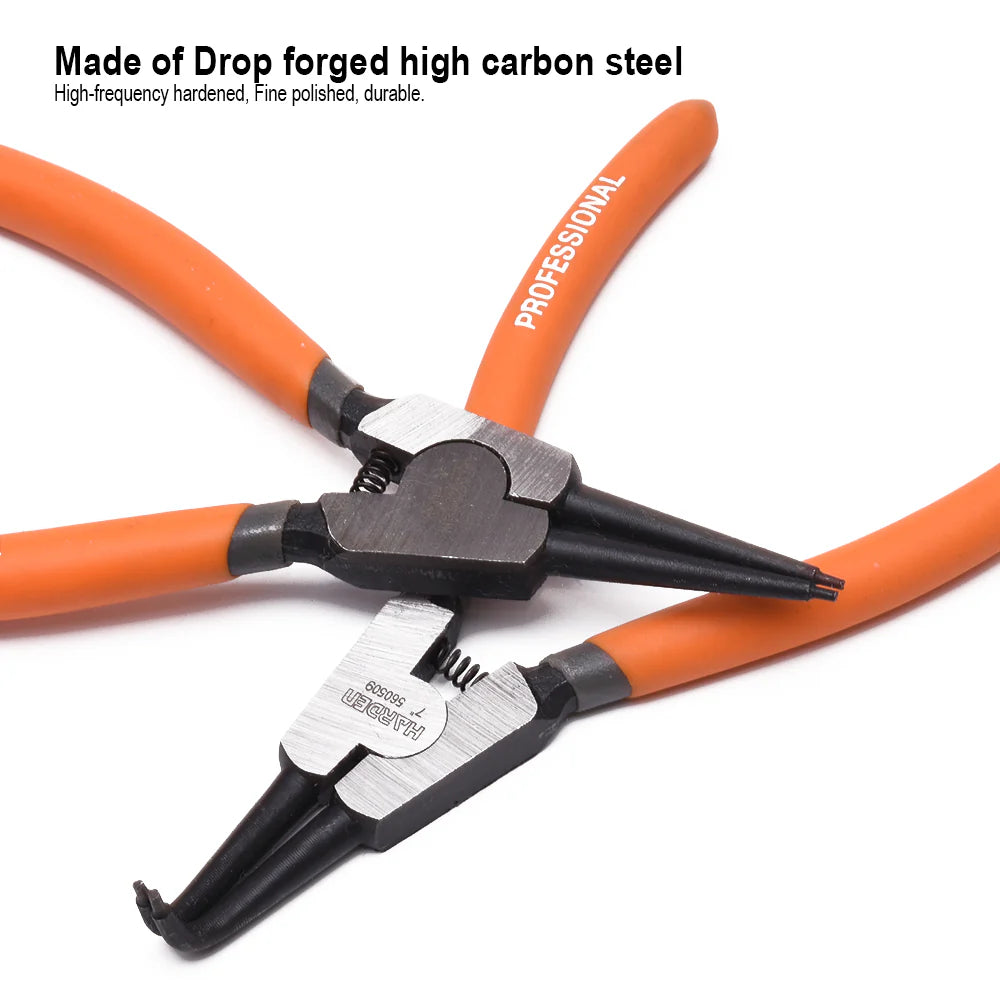

HARDEN 13-Inch (325mm) Professional External 90° Bent-Jaw Circlip Pliers | 560511

Description

Manage oversized retaining rings with industrial power using the HARDEN 560511 13" External Bent-Jaw Circlip Pliers. While standard 7-inch pliers lack the reach and strength for heavy machinery, this 13-inch professional tool is specifically designed to handle high-tension external snap rings on large-diameter shafts and axles.

Forged from premium Chrome Vanadium (Cr-V) steel and heat-treated for maximum structural integrity, the 560511 features a specialized 90-degree bent nose. This geometry allows for clear visibility and easy access when working in recessed housings or obstructed mechanical assemblies. The precision-ground 3.2mm tips are induction-hardened to prevent bending or "mushrooming" under extreme tension, ensuring a secure, non-slip fit into circlip eyelets. To ensure all-day comfort, the tool is finished with ergonomic dipped handles that provide a cushioned, secure hold even when hands are oily.

Key Features & Benefits:

• Extra-Long 13-Inch Body: Provides the massive mechanical advantage needed to open high-tension, heavy-duty external circlips.

• 90° Bent-Jaw Design: Optimized for accessing snap rings in deep-seated housings or confined mechanical spaces.

• Forged Chrome Vanadium (Cr-V) Steel: Industrial-grade construction for superior strength and exceptional resistance to flexing.

• Heavy-Duty 3.2mm Tips: Precision-machined and hardened to HRC 52-58 for a rock-solid, non-slip grip on large retaining rings.

• External Snap Ring Geometry: Specifically designed to open rings for installation or removal from shafts (Shaft Range: 85mm – 140mm).

• Ergonomic Dipped Handles: Dual-material, non-slip grips offer superior comfort and prevent hand fatigue during heavy repairs.

Technical Specifications:

• Model Number: 560511

• Overall Length: 13 inches / 325mm

• Material: Forged Chrome Vanadium (Cr-V) Steel

• Tip Diameter: 3.2mm

• Working Range: 85mm – 140mm (External Shaft Rings)

• Hardness: HRC 45–50 (Body) / HRC 52–58 (Tips)

Ideal For:

• Heavy Automotive & Truck Repair: Managing large snap rings on axles, drive shafts, and transmissions.

• Agricultural Machinery: Servicing tractors, harvesters, and irrigation pumps.

• Industrial Plant Maintenance: Maintenance of large conveyor systems, gearboxes, and hydraulic cylinders.

• Marine Engineering: Heavy-duty mechanical repairs on vessel shafts and propulsion units.
