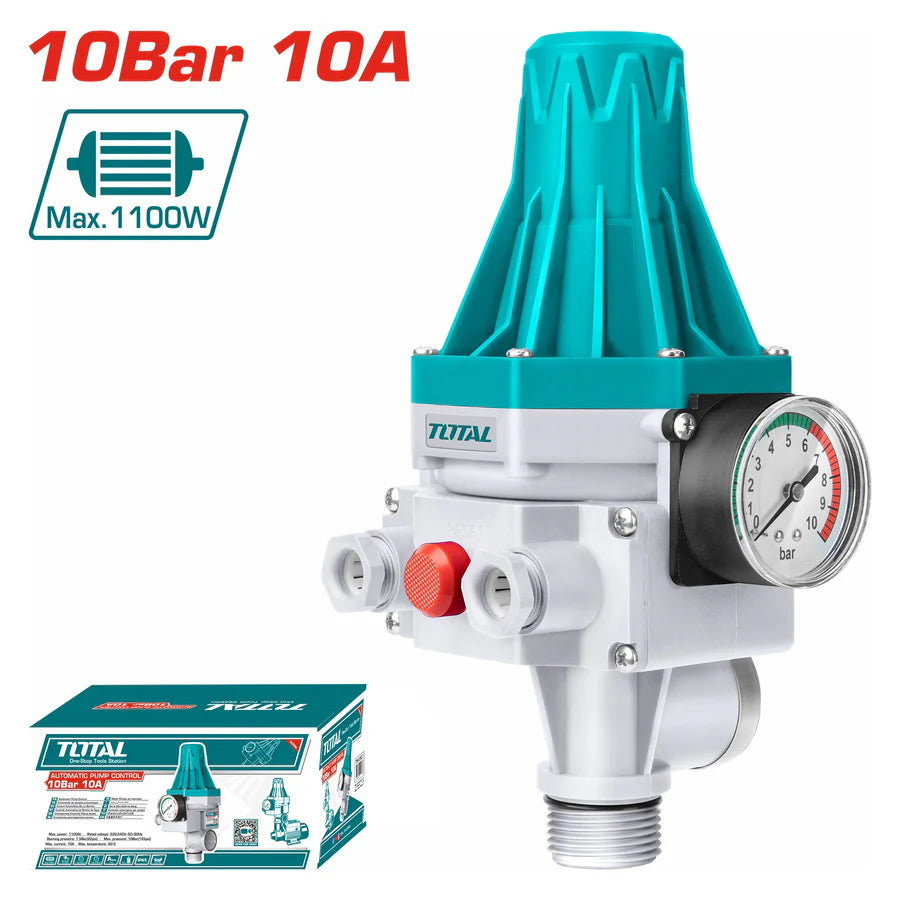

TOTAL TWPS102 Automatic Water Pump Pressure Controller

Description

• Model: TWPS102

• Function: Automatically manages pump operation by starting and stopping based on water demand (opening/closing taps).

• Starting Pressure: Adjustable starting pressure range from 1.5 Bar to 3.0 Bar for customized system performance.

• Maximum Pressure: Capable of withstanding a maximum working pressure of 10 Bar.

• Dry-Run Protection: Built-in protection feature that automatically stops the pump when water is not detected, preventing damage to the motor.

• Voltage/Frequency: 220V-240V ~ 50/60Hz.

• Maximum Current: Supports up to 10A, suitable for pumps up to 1.5HP.

• Connection Size: Standard 1" (G1") male threaded inlet and outlet for quick and secure installation.

• Safety Rating: IP65 rated for superior dust and water resistance, ensuring durability in damp environments.

• Max Temperature: Suitable for water temperatures up to 60°C.

• User Interface: Features a built-in pressure gauge for real-time monitoring and LED status indicators for "Power On," "Pump On," and "Failure."

• Packaging: Packed in a TOTAL brand color box.
