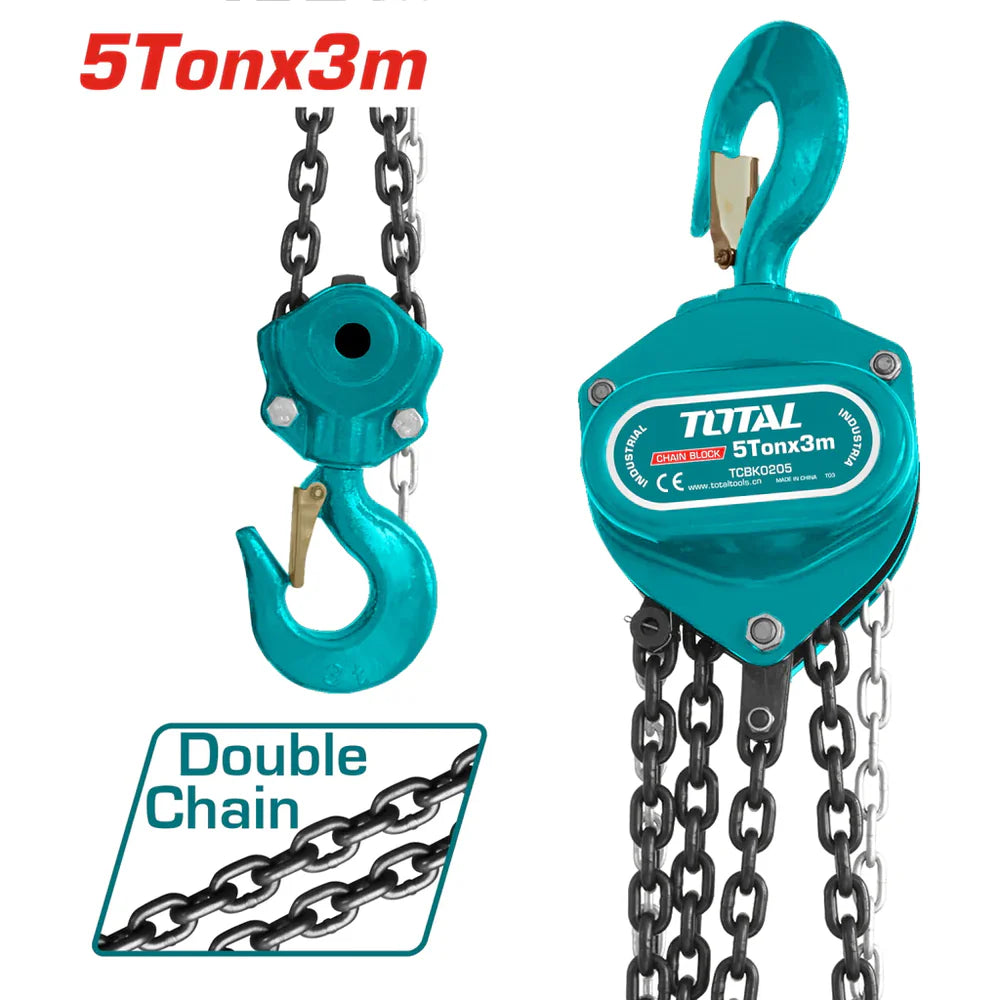

Total 5 Ton Chain Block Hoist TCBK0205 - 688mm Headroom

Description

The Total Chain Block (Model TCBK0205) is a robust, manual lifting solution engineered for heavy-duty industrial environments. This hand chain hoist, also known as a chain fall, delivers a massive 5-ton capacity and is designed with an optimal 688 mm minimum headroom for installations where space between the trolley beam and the load is restricted.

Key features and technical specifications:

• Brand: Total

• Model No.: TCBK0205

• Product Type: Manual Chain Block / Hand Chain Hoist

• Lifting Capacity (Rated): 5 Ton (or 10,000 lbs), making it suitable for lifting and positioning the heaviest machinery and components.

• Standard Lift Height: 3m (approximately 9.8 feet), providing a standard vertical travel distance for most applications.

• Number of Load Chains: 2

• Hook to Hook Distance (Min. Headroom): 688 mm - This key specification ensures maximum utilization of vertical space, minimizing lifting limitations in tight areas.

• Construction: Features an all-steel, durable body and high-quality alloy steel load chain for exceptional strength and longevity.

• Operation: Manually operated via a hand chain, utilizing a high-efficiency gearbox to achieve the 5-ton lift rating with manageable pull force.

• Braking System: Equipped with a dependable mechanical brake for secure load holding and precise positioning control.

• Suggested Applications: Ideal for:

  • Heavy equipment maintenance and repair in factories and large workshops.

  • Bridge and structural steel erection.

  • Mining and infrastructure projects requiring high-capacity manual lifting.
